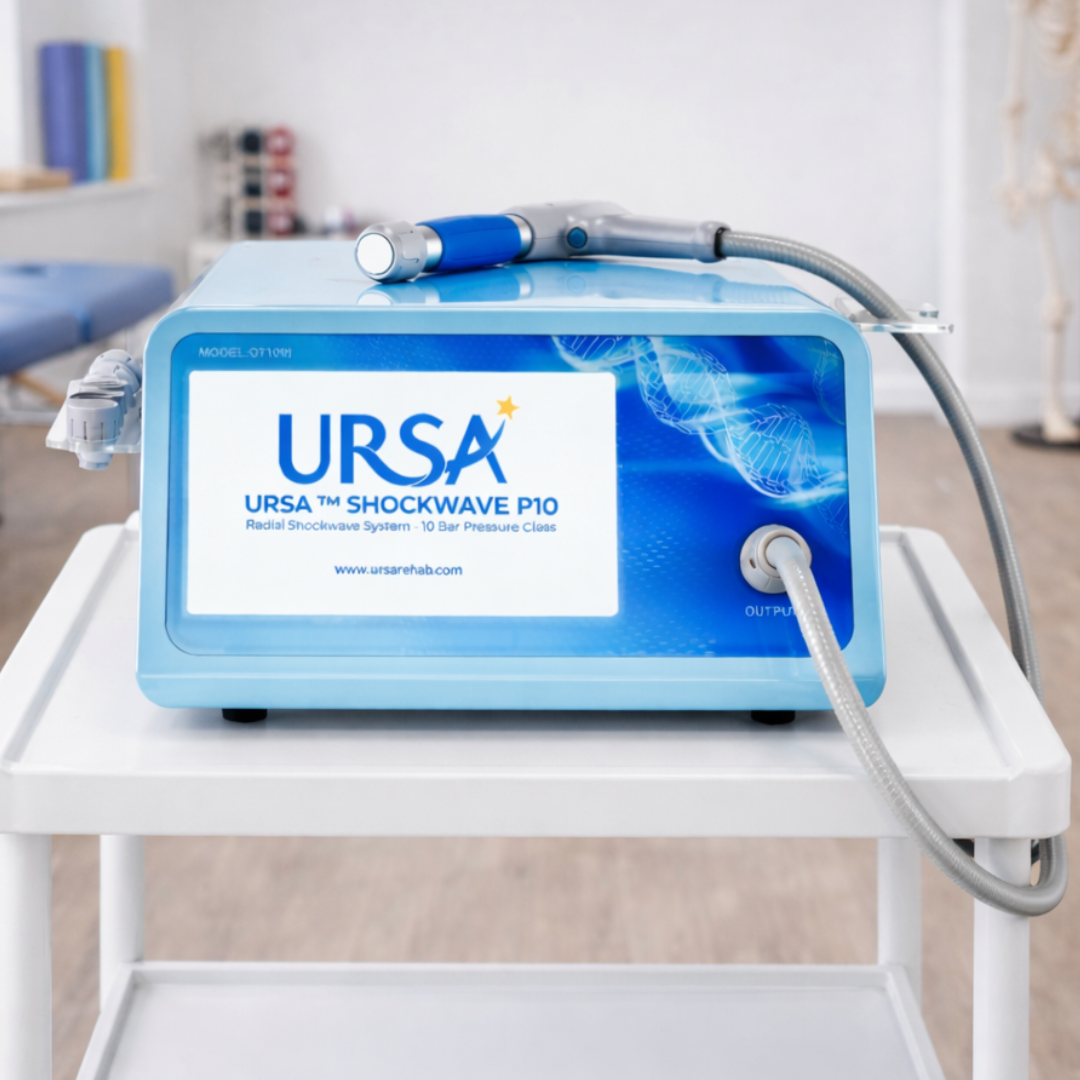

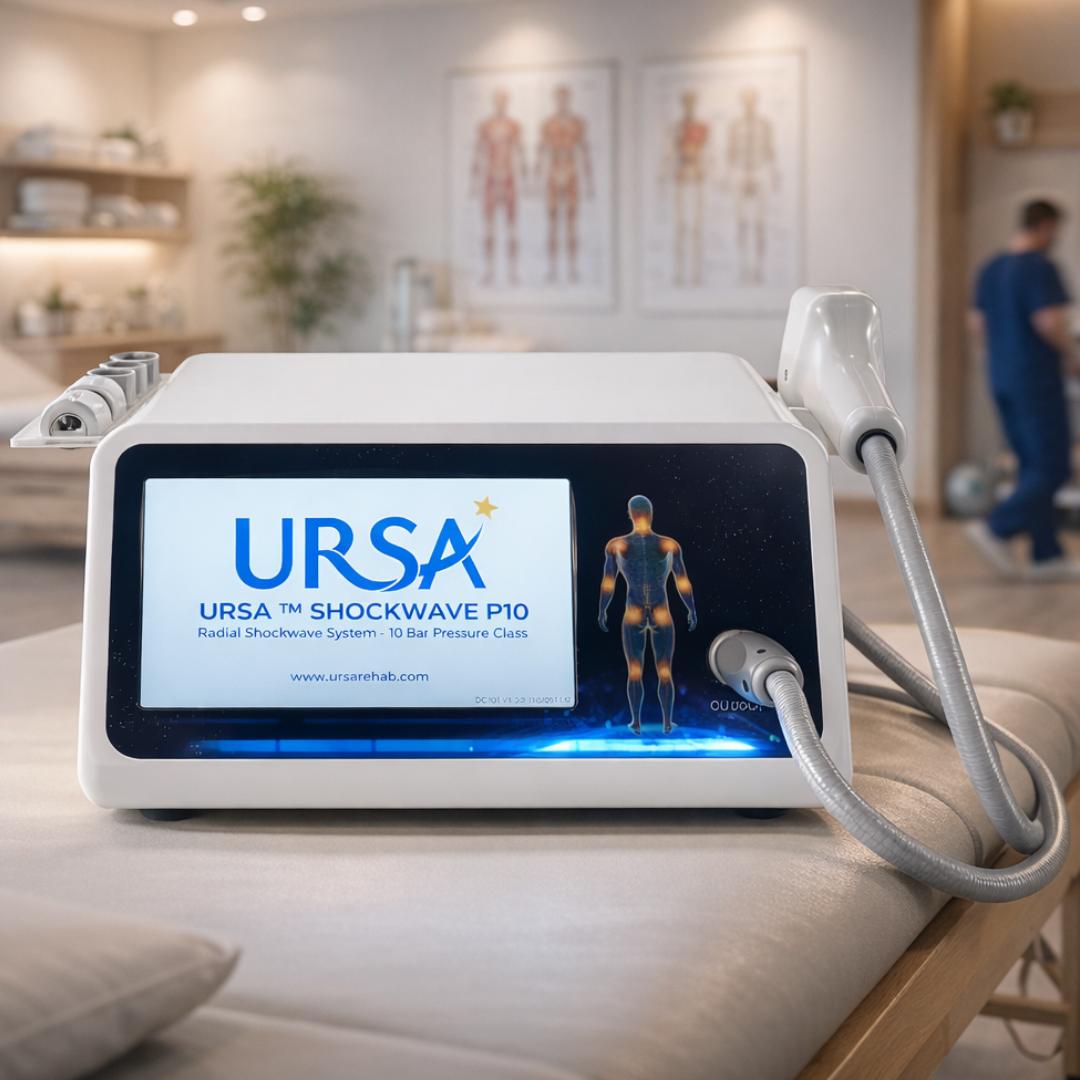

URSA™ Shockwave P10
The URSA™ Shockwave P10 is a pneumatic pressure-based energy delivery system designed for professional rehabilitation environments.
The system utilizes a compressed air mechanism to generate controlled mechanical pulses, enabling consistent energy transfer through a projectile-based applicator architecture.
The system utilizes a compressed air mechanism to generate controlled mechanical pulses, enabling consistent energy transfer through a projectile-based applicator architecture.
Core System Characteristics
◦ Pneumatic shockwave generation via compressed air acceleration
◦ Controlled pressure output range (0.5 – 10 bar)
◦ Adjustable pulse frequency (1 – 22 Hz)
◦ Defined pulse delivery per session (500 – 3,000 pulses)
◦ Multi-applicator configuration for treatment variation
◦ Controlled pressure output range (0.5 – 10 bar)
◦ Adjustable pulse frequency (1 – 22 Hz)
◦ Defined pulse delivery per session (500 – 3,000 pulses)
◦ Multi-applicator configuration for treatment variation
System Overview
Energy Delivery Architecture
Pneumatic pressure-driven system:
• Compressed air accelerates an internal projectile within the applicator
• Mechanical impact generates radial pressure waves at the treatment interface
• Energy transfer is controlled through:
◦ Pressure level (bar)
◦ Pulse frequency (Hz)
• Designed for consistent pulse generation and repeatable operation
• Compressed air accelerates an internal projectile within the applicator
• Mechanical impact generates radial pressure waves at the treatment interface
• Energy transfer is controlled through:
◦ Pressure level (bar)
◦ Pulse frequency (Hz)
• Designed for consistent pulse generation and repeatable operation
Adjustable Parameters
• Pressure output (0.5 – 10 bar)
• Pulse frequency (1 – 22 Hz)
• Pulse count per session (500 – 3,000 pulses)
• Treatment duration control
• Manual parameter adjustment
• Pulse frequency (1 – 22 Hz)
• Pulse count per session (500 – 3,000 pulses)
• Treatment duration control
• Manual parameter adjustment
User Interface
• Touchscreen control interface
• Parameter selection and adjustment
• Real-time operational display
• Session monitoring and control
• Parameter selection and adjustment
• Real-time operational display
• Session monitoring and control
System Performance
• Stable pulse generation across operating range
• Defined output consistency per session
• Total projectile lifecycle: 2.5 – 3.0 million pulses
• Designed for repeated clinical use
• Defined output consistency per session
• Total projectile lifecycle: 2.5 – 3.0 million pulses
• Designed for repeated clinical use
Technical Specifications
• Pressure range: 0.5 – 10 bar
• Pulse frequency: 1 – 22 Hz
• Pulse range (per session): 500 – 3,000 pulses
• Total shot capacity: 2.5 – 3.0 million pulses
• Number of applicators: 5
• Power supply: AC 220 V
• Input current: ≤ 5 A
• Input frequency: 50 / 60 Hz
• Power consumption: ≤ 350 W
• Dimensions (main unit): 40 × 41 × 21 cm
• Package dimensions: 51 × 49 × 36 cm
• Net weight: 17 kg
• Pulse frequency: 1 – 22 Hz
• Pulse range (per session): 500 – 3,000 pulses
• Total shot capacity: 2.5 – 3.0 million pulses
• Number of applicators: 5
• Power supply: AC 220 V
• Input current: ≤ 5 A
• Input frequency: 50 / 60 Hz
• Power consumption: ≤ 350 W
• Dimensions (main unit): 40 × 41 × 21 cm
• Package dimensions: 51 × 49 × 36 cm
• Net weight: 17 kg
Standard Configuration
• Shockwave main unit ×1
• Applicators (5 pcs)
• Applicator heads set
• Power cable
• Accessories kit
• Applicators (5 pcs)
• Applicator heads set
• Power cable
• Accessories kit
